Dynamix DW-E

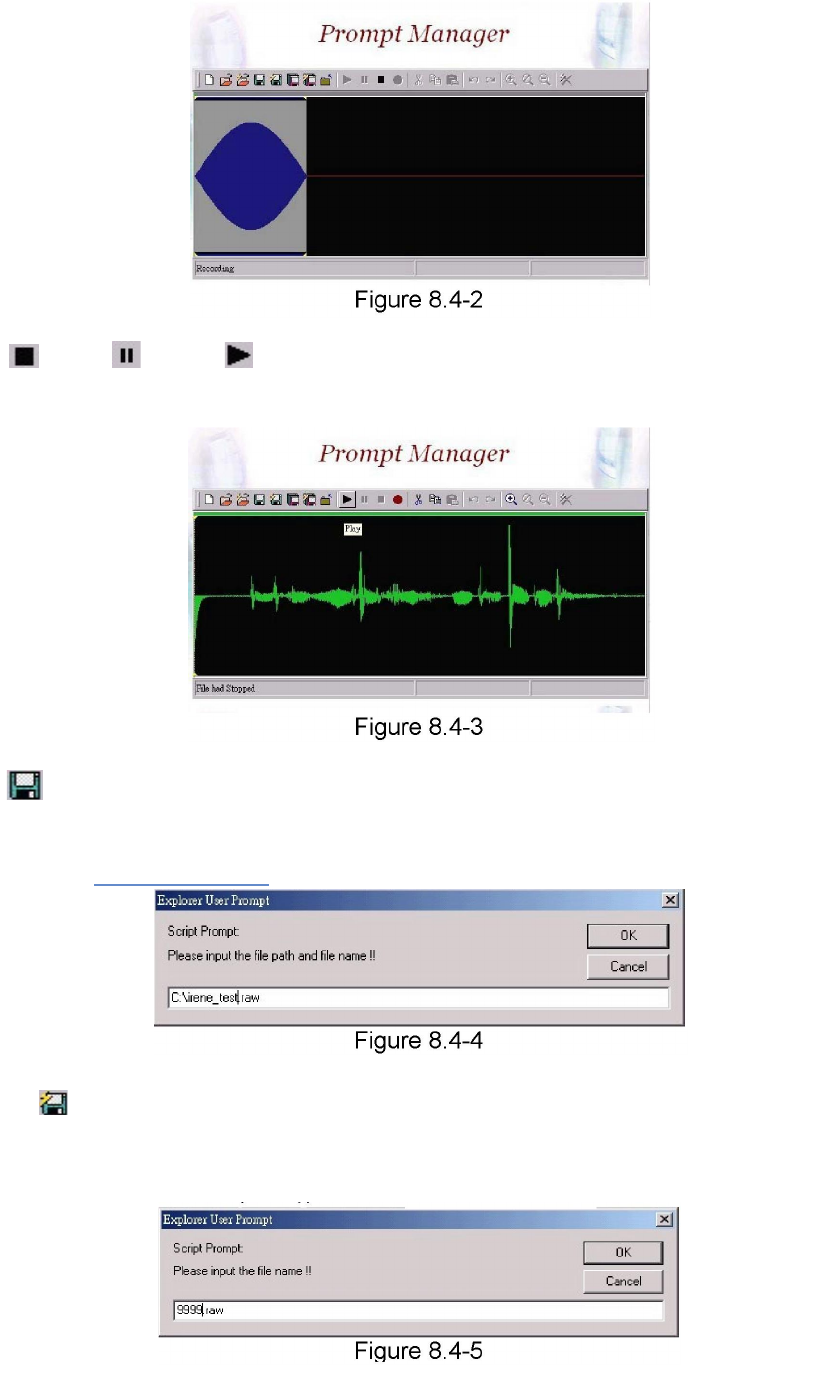

Stop, Pause, Play:

Step 2: Click Stop or Pause button to stop record, and click Play button to

listen the voice prompt as figure 8.4-3.

Save:

Step 3: Click Save button to saving the voice file at local path, and the screen

shows please input the file path and file name!! (i.e.

c:\irene_test.raw) as figure 8.4-4.

Save Remote File:

Step 4: Click Save Remote File to saving the voice file at Dynamix DW-E,

and the screen shows “please input the file path and file name!!”

(i.e. 9999.raw) as figure 8.4-5 _____________

☻Note: The file name must be “.raw” file format.
